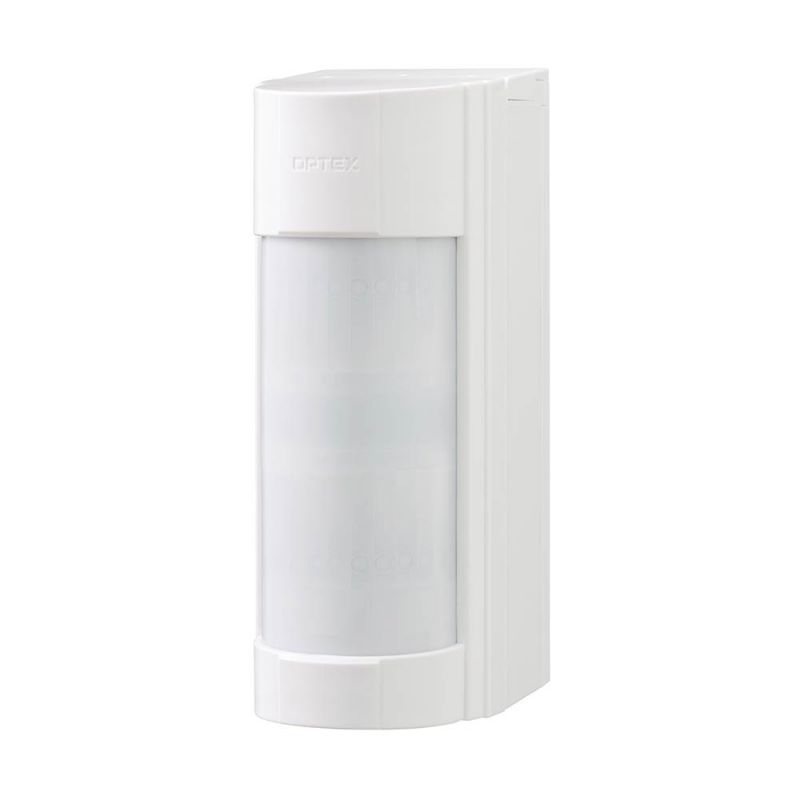

Optex VXI-RDAM-X5 Dual technology PIR detector + Microwave…

Optex VXI-RDAM-X5. Dual technology PIR detector + Microwave 10,525GHz for outdoors of 12m, 90 °. Antimasking by active IR. Discriminate small pets. SMDA Advanced Processing Logic. 16 detection zones. Detection range adjustable in 5 levels. Sensitivity adjustable in 3 levels. Alarm output and sabotage tamper (optional). Double conductive mesh (patented) to avoid interference. IP55. Self-powered with 3V ~ 9V DC lithium or alkaline batteries or from radio transmitter. Vxi-rdam-x5.

Features

– Double PIR detector for outdoors

– Discriminates small pets

– Digital anti-mask by active IR

– Compatible with most radio transmitter manufacturers (not included)

– Coverage of 12 meters

– 90 ° detection, rotatable 180 °

– Range of detection adjustable in 5 levels

– Sensitivity adjustable in 3 levels

– 16 detection zones

– SMDA Advanced Processing Logic

– Mounting height of 0.8 ~ 1.2 meters

– Microwave X-band: 10.525GHz

– Auxiliary input for use with a second device or photocell

– Alarm relay: NC / NA (10V DC, 0.01A)

– Sabotage Tamper: OPTEX-41 (WRS-04

– Fault Output: NC / NA (10V DC, 0.01A)

– Double Conductive Mesh Protection

– Powered by 3V ~ 9V DC lithium or alkaline batteries (not included)

– Compatible Batteries: CR123A x3, 1 / 2AA x3 or x6, CR2 x3

– Battery compartment: OPTEX-42 (RBB-01)

– It is recommended to feed from the transmitter battery via radio

– Working temperature:  -20 ° C ~ + 60 ° C

– IP55

– Dimensions: 185.9 x 71.3 x 105.5 mm

– OPTEX-20
