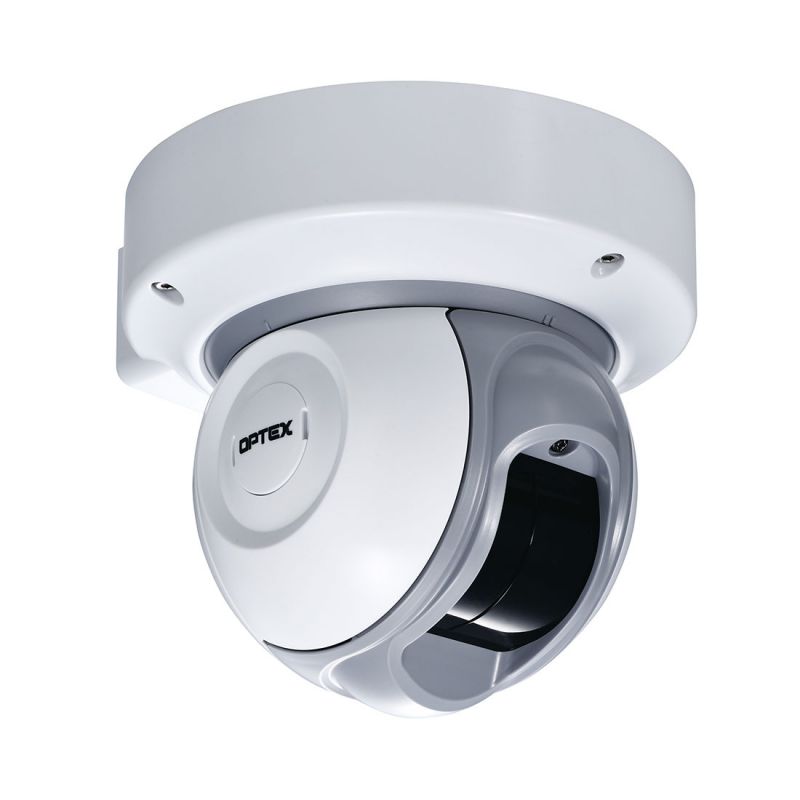

Name: Optex RLS-2020I Compact size Redscan Mini laser scanning…
SKU: 'RLS-2020I
Availability: InStock

Optex RLS-2020I Compact size Redscan Mini laser scanning…

Optex RLS-2020I. Compact size Redscan Mini laser scanning detector, with intelligent detection analysis. Indoor version. Rls-2020i.

Characteristic

– Detection area: 20 x 20 meters, 95°

– With Redscan laser technology

– Unique detection algorithm

– Automatic area adjustment function

– Horizontal or vertical detection modes

– Horizontally detects within a radius of 21 meters

– Install at a height of 2 meters or higher (in portrait mode)

– Structure with multi-angle adjustment

– Advanced detection algorithm

– Automatic area adjustment function

– Advanced area adjustment

– Identifies the shape, speed and distance of a moving object

– 4 IP detection zones, adjustable (Redwall event codes)

– 3 detection zones through analog outputs (adjustable)

– Alarm outputs: Anti-rotation, Anti-masking, tamper, and Dirty sensor

– Support protocols: UDP, TCP/IP, HTTP (web configuration) and SNMP

– Operating temperature from -40° ~ +50°C

– Power: 12V DC / 24V DC

– Max consumption at 12V DC: 500mA

– Compatible with POE power

– PoE consumption: 6W

– Dimensions: 146 x 160 x 160mm

– OPTEX-131
