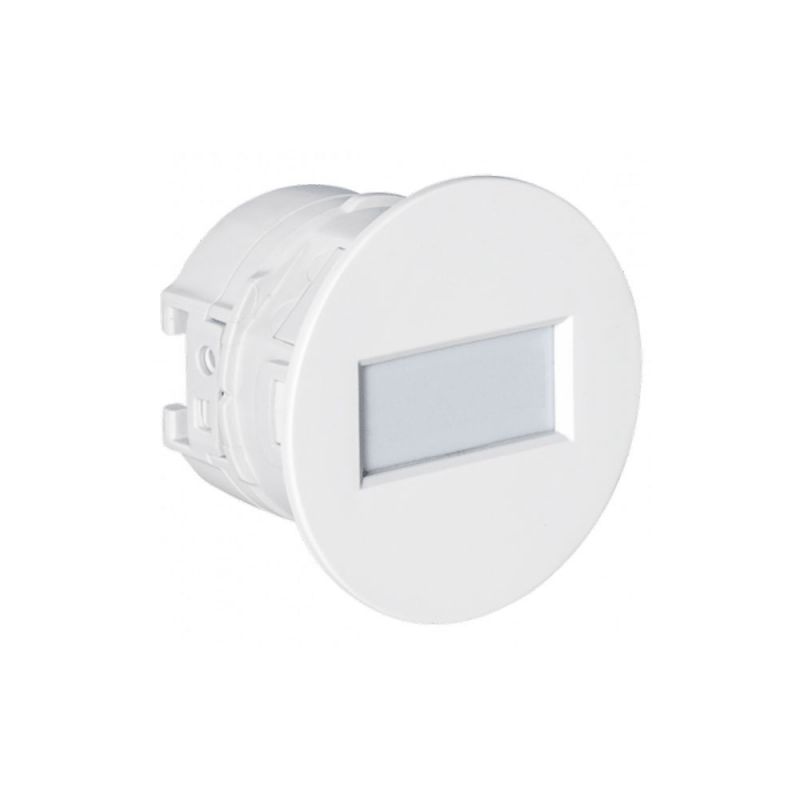

Optex AP-20NBR PIR curtain detector for flush mounting

Original price was: €43,34.Current price is: €17,34.

Add to Wishlist
Compare
'AP-20NBR

Optex AP-20NBR. PIR curtain detector for flush mounting. Battery operated. Curtain coverage of 6 meters. Compact and discreet design. Three levels of sensitivity. Tamper tamper. Battery saving timer Battery operated version of the ap-20b(c) / a10050504.

  • Indoor flush mount PIR detector
  • Passive infrared detection method
  • Provides 6 meters curtain area
  • Sensitivity: 2°C at 0.6 m/s
  • Detection speed: 0.3 ~ 3 m/s
  • Offers low profile installation for various application scenarios
  • Point detection patterns: ceiling mount, horizontally oriented wall mount and vertically oriented wall mount
  • Detection sensitivity: high, medium, and low
  • 2-second alarm cycle
  • 60 second warm-up time
  • LED indicator
  • Alarm output: NO/NC, 3.6V DC, 10 mA
  • Tamper tamper: NC, 28V DC, 100 mA
  • Power supply: 2.7V ~ 3.6V DC (CR123A lithium battery)
  • Current: 10 ?A (idle), 4 mA (maximum)
  • Battery saving timer
  • Operating temperature -20°C ~ +50°C (-20°C ~ +50°C)
  • Operating relative humidity <95%.
  • Indoor installation environment
  • Installation height of 1.5 meter (horizontal), 1 meter (vertical)
  • Recessed, wall or enclosure installation type 86
  • Dimensions: Ø52 x 35.5 mm
  • Weight: 50 g

– OPTEX-235
