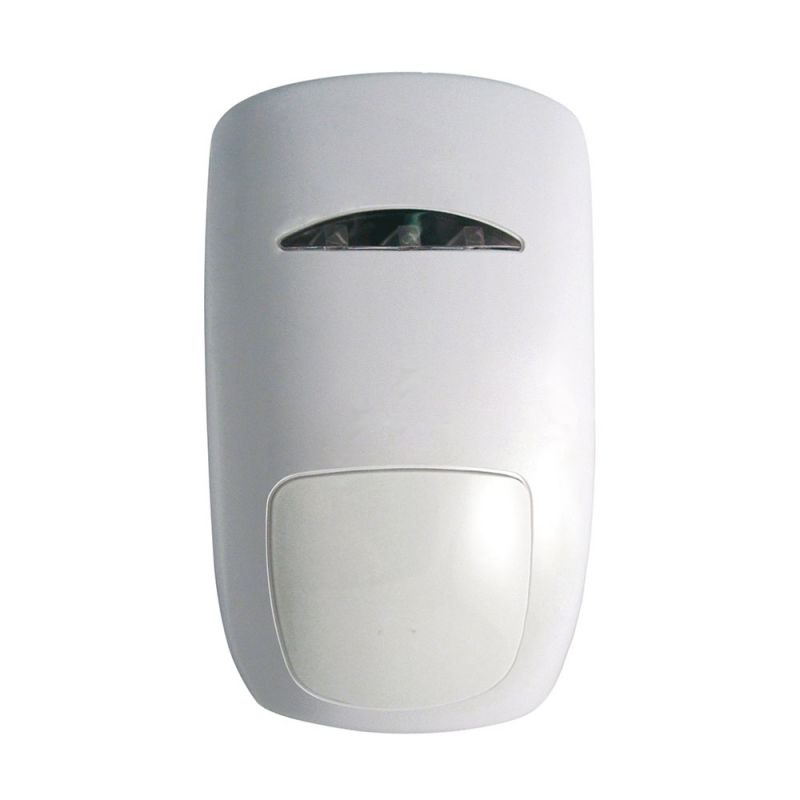

Guardall DT15+ Performance Line detector with dual technology…

Guardall DT15+. Performance Line detector with dual technology PIR QUAD volumetric + Microwave X Band. Microwave antimasking. 15 meters, 90 °. Zero angle. EN50131 Grade 3. Performance line detector dt am + act 15mts grado 3.

– Infrared / microwave dual technology volumetric detector, with active anti-masking

– Coverage of 15 meters, 90 °

– Anti-caulking technology, which ensures the detection and operation AND (Y) of the two technologies in the presence of critical ambient temperature and / or camouflage attempts

– Advanced microwave anti-masking system, capable of detecting sabotage attempts of one or both alarm channels

– Special mirror for zero angle detection

– 3 leds for indication and tests

– X-band precision microwave technology

– Possibility of inhibition of the microwave channel in day mode

– High immunity to electromagnetic and fluorescent interference

– Horizontal adjustment

– Continuous monitoring of sensor operation with fault output

– Automatic switching to PIR or microwave mode only, in case of failure of one of the two technologies

– Different values ??of end-of-line resistors for easy installation

– Remote self-test

– Varifocal optics, which does not require adjustment and optimizes the detection area

– Precise microwave range adjustment

– Solid state relay

– Supply voltage monitoring

– 9V ~ 16V DC power

– Consumption of 13 ~ 21 mA

– Working temperature of -10 ° C ~ + 55 ° C

– Dimensions: 110 x 66 x 42 mm

– Weight: 135 g

– 5 year warranty

– Certificate EN50131 of Grade 3

– GUAR-26
